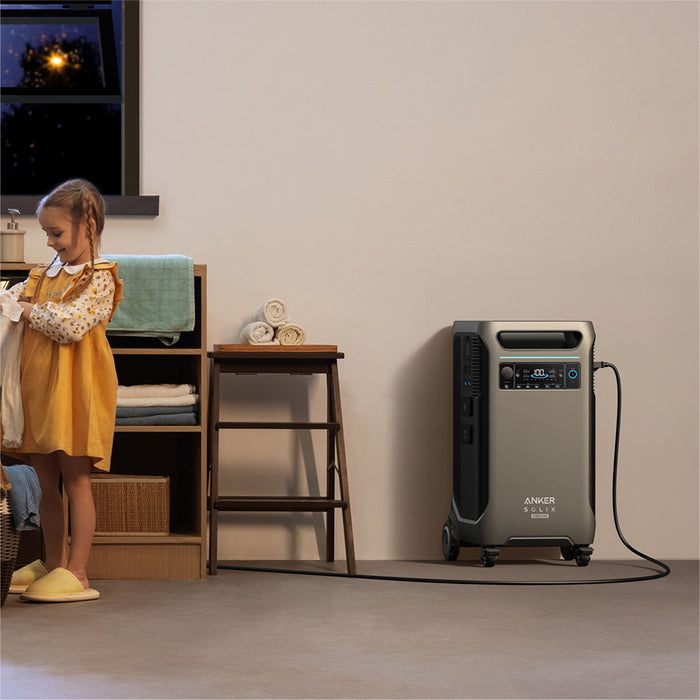

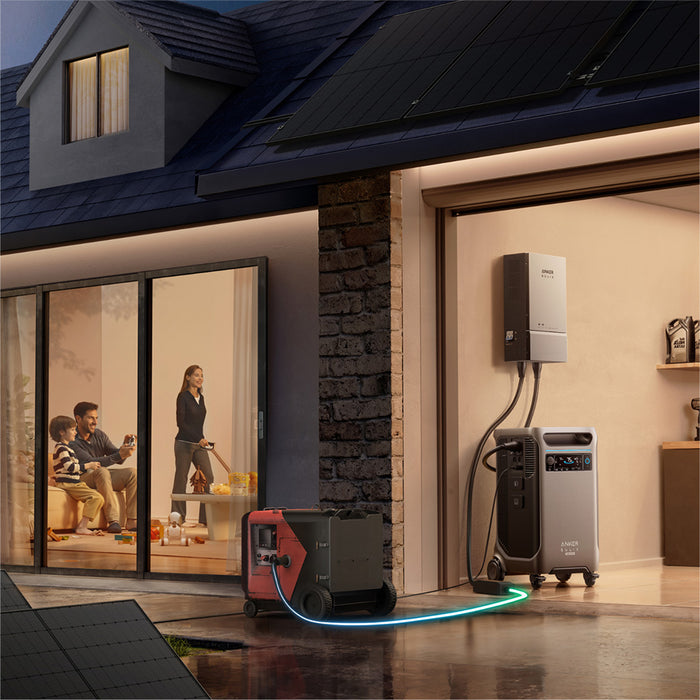

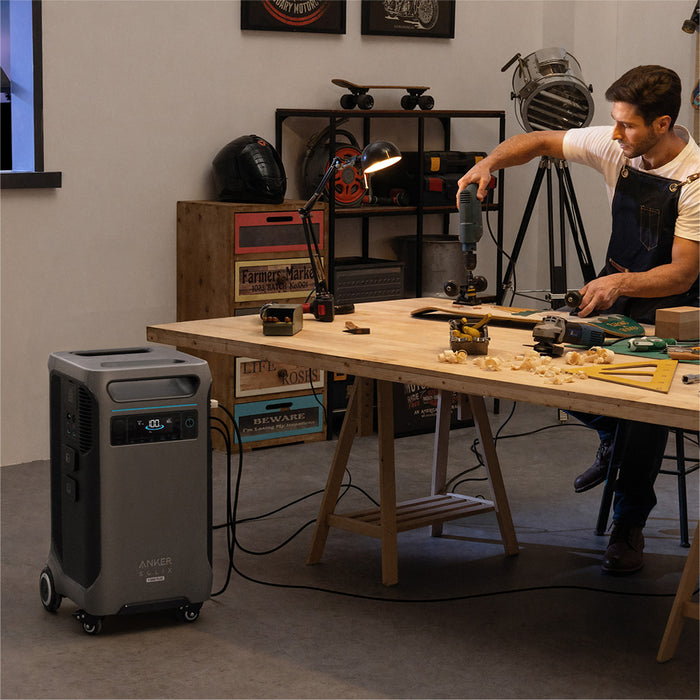

The Anker SOLIX F3800 Plus Portable Power Station is the versatile, expandable energy solution for resilient home
power needs.
With a 3.84kWh battery (enough for a full day) that scales up to 26.9kWh with additional batteries or combines with
another unit for 12,000W output, it delivers 6,000W AC power at 120/240V to run everything from dryers to whole
homes, while seamlessly integrating 3,200W solar input and a 6,000W generator bypass for fast recharging.
Backed by a 5-year warranty and built with EV-grade LFP batteries for a 10+ year lifespan, it features smart app
control for remote monitoring, plus NEMA ports to charge EVs or power RVs during grid outages.
| SKU |
|
| XP9500iH |
| Brand |
DuroMax Power Equipment |
| Gasoline |
| Peak Wattage |
9,500 |
| Running Wattage |
7,600 |
| Running Amperage at 120V |
63.33 |
| Running Amperage at 240V |
31.67 |
| Runtime at 25% Load |
21 |
| Runtime at 50% Load |
11 |
| Propane |
| Peak Wattage |
9,025 |
| Running Wattage |
7,200 |
| Running Amperage at 120V |
60 |
| Running Amperage at 240V |
30 |
| Runtime at 25% Load on 40/60/100 lb Tank |
19/28.5/47.5 |
| Runtime at 50% Load on 40/60/100 lb Tank |
10/15/20.25 |
| Engine and Emission Specification |
| Engine Manufacturer |
DuroMax Power Equipment |
| Engine Type |
4-Stroke |
| Valve Type |
OHV |
| Engine Cooling Type |
Forced Air |
| Engine Size |
459cc |
| Engine Speed |
3400 RPM |
| Starting Type |
Push Button |
| Electric Start |
Yes |
| Recoil Start |
Yes |
| Idle Control |
Demand Based Variable Idle |
| Fuel Delivery System |
Carburetor |
| Fuel Types |
Gasoline and Propane |
| Oil Cooling Type |
Splash |
| Recommended Oil |
10W-30 |
| Recommended Oil Types |
Blended, Conventional, or Synthetic |
| Oil Capacity |
40.6 fluid oz |
| Suggested Propane Tank Size |
40 lbs. minimum |
| Automatic Low Oil Shutdown |
Yes |
| Cylinder Sleeve |
Boron Cast Iron |
| Bearing Type |
Stainless Steel Ball Bearing |
| CO Sensor Shutdown |
Yes |
| EPA Certified |
Yes |
| 50 State Compliant |
No |
| Non-California Emissions Compliant |
Not For Sale to California |
| Panel Specification |
| Battery Switch |
Yes |
| Volt Meter |
Digital |
| Hour Meter |
Yes |
| 5-20R |
4 |
| L14-30R |
1 |
| 14-50R |
1 |
| Generator Specification |
| Manufacturer |
DuroMax Power Equipment |
| Part # |
XP9500iH |
| Voltage |
120/240 Volts |
| Frequency |
60 Hertz |
| GFCI Outlets |
Yes |
| 4 Foot Propane Hose & Regulator |
Included |
| Winding Material |
100% Copper Windings |
| Battery Type |
12V AGM Battery |
| Battery Included |
Yes |
| RV Ready |
Yes |
| Home Backup Ready |
Yes |
| Fuel Tank Capacity Gasoline |
7.1 Gallons |
| Fuel Gauge |
Yes |
| Product Dimensions |
26.2"-Long x 25"-Wide x 29.6"-High |
| Product Dry Weight |
216-lbs |
| Product Weight |
226-lbs |
| Volume @ 25% Load (db) |
61 dB |
| UPC |
811640017026 |
| Warranty |
5 Year |
| Wheel & Handle Kit |
Included |
| Wheel Diameter |
8.5" |
| B1790114M |
| Brand |
Anker |
| Cell Capacity |
51.2Vdc 75Ah/3840Wh |
| AC Input |
120V~ 15A Max (< 3hrs) / 12A Max (continuous), 60Hz, L+N+PE |
| AC Input Power (Charging) |
1800W Max |
| AC Input Power (Bypass Mode) |
1440W Max |
| Solar Panel Input 1 |
11-165V⎓17A Max (1600W Max Each) |
| Solar Panel Input 2 |
11-165V⎓17A Max (1600W Max Each) |
| DC Input Port |
60V Max, 120A Max |
| Car Charger Output |
12V⎓10A |
| Home Power Panel Port |
6000W Max (AC Input), 6000W Max (AC Output), 120V/240V, L1+L2+N+PE |
| AC Output Power (Total) |
6000W Max |
| AC Output 1 |
120V~ 20A Max, 60Hz, 2400W Max |
| AC Output 2 |
120V~ 20A Max, 60Hz, 2400W Max |
| AC Output (NEMA TT-30) |
120V~ 25A Max, 60Hz, 3000W Max |
| AC Output (NEMA L14-30R) |
120V/240V~ 25A Max, 60Hz, 6000W Max |
| USB-A Output |
5V⎓2.4A (12W Max Per Port) |
| USB-C Output |
5V⎓3A / 9V⎓3A / 15V⎓3A / 20V⎓3A / 20V⎓5A (100W Max Per Port) |
| UPS |
20ms |
| Discharging Temperature |
-4°F-104°F / -20°C-40°C |
| Charging Temperature |
32°F-104°F / 0°C-40°C |
| Size |
27.6×15.3×15.6 in / 70.2×38.8×39.5 cm |
| Net Weight |
61.5 kg / 135.6 lb |
| R510A |
| Brand |
Reliance |
| Product Specs |
| Model |
Pro/Tran-2 |
| Voltage |
120/240V single phase |
| Rated Watts |
12500 Watts |
| Rated Amps |
50 |
| Enclosure |
NEMA 3R |
| Conduit Length |
16 |
| Number of Circuit Breakers |
10 |
| UL Listed |
Yes |
| Transfer Switch Circuits |
| 15A 120V |
6 |
| 20A 120V |
2 |
| 20A 240V |
1 |
| Circuit Breaker Protection |
Each Circuit |
| Overview |
| Length |
13 in |
| Width |
12 in |
| Height |
5 in |
| Weight |
18 lbs |
