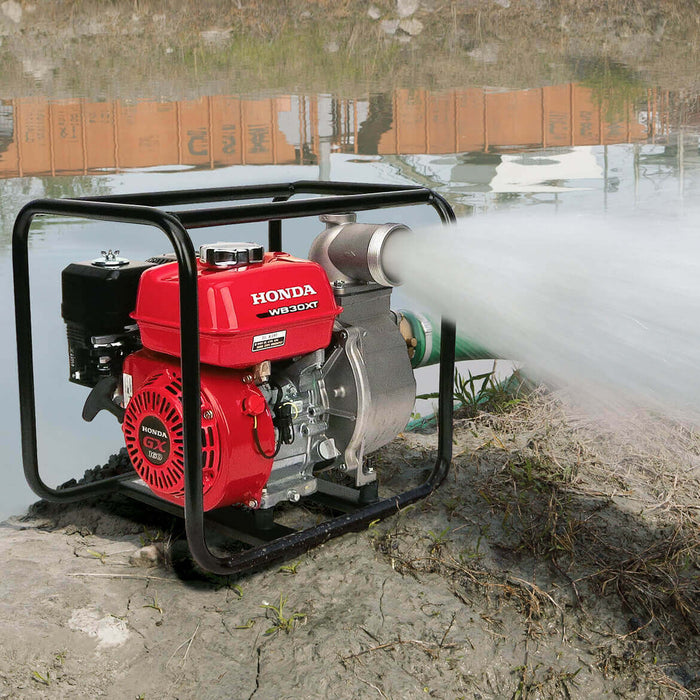

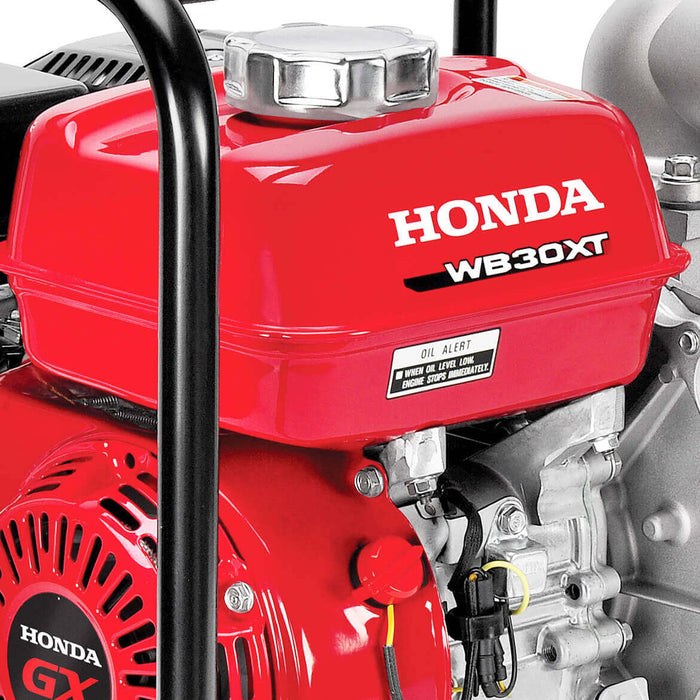

Honda WB30XT3 160cc 3" 290 Gal/Min Centrifugal Water Pump - Scratch and Dent
SKU | WB30XT3-SD |
Brand | Honda |

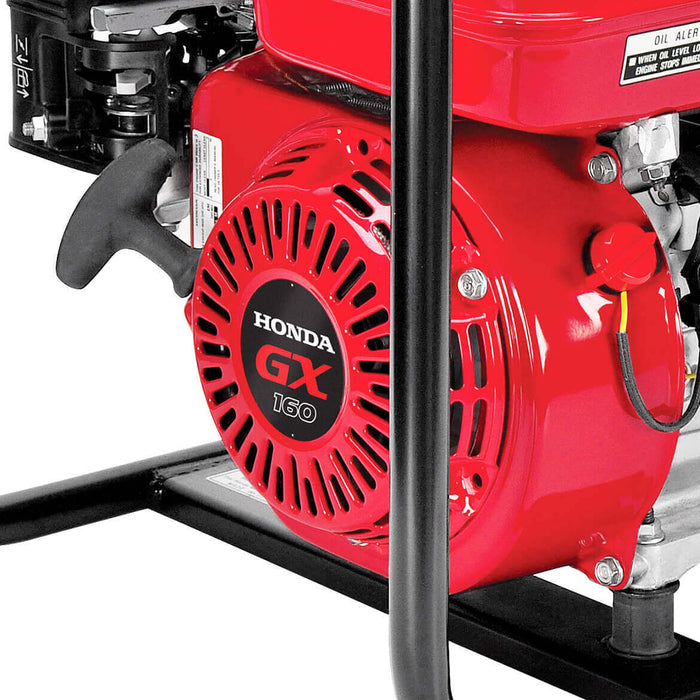

Engine | GX160 |
Displacement | 163cc |
Bore and stroke | 2.7" x 1.8" |
Compression Ratio | 9.0-1 |
Oil Alert | Std |
Pump Type | Centrifugal, Self-priming |
Volute | Rigid Mounted Cast Iron |
Impeller | 4 Vane Cast Iron |
Mechanical Seal (Pump case / impeller) | Silicon Carbide/Silicon Carbide |
Priming time | 150 sec @16.4 ft. |
Drive system | Direct |
Discharge capacity | 290 gal/min |
Suction port diameter | 3" NPT |

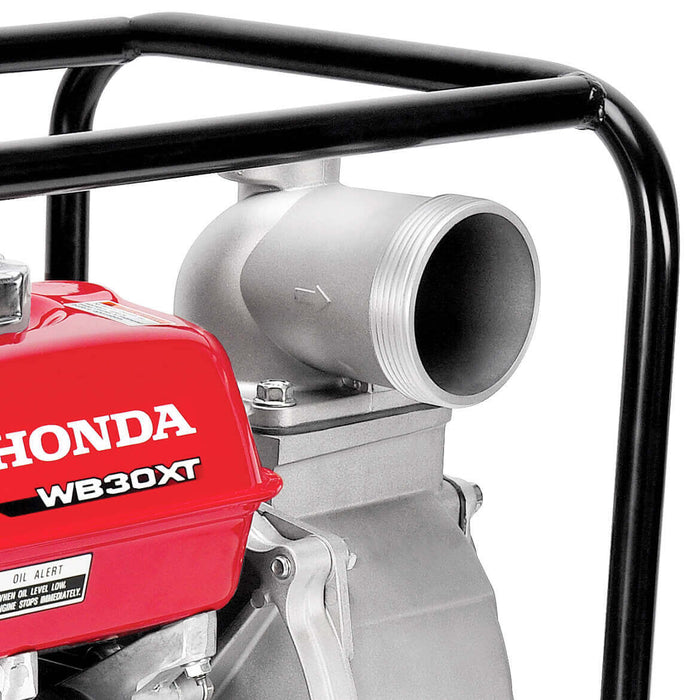

Discharge port diameter | 3" NPT |
Total head lift | 85 ft. |
Suction head lift | 25 ft. |
Maximum pressure | 37 psi |
Solids handling | N/A |
Dimensions (LxWxH) | 20.1"x 15.2" x 17.9" |
Dry weight | 57 lb. |
Fuel Capacity | 0.82 gal |
Run Time at Max Discharge | 1.9 hr |
Strainer Part # | 78325-YG4-000 |
